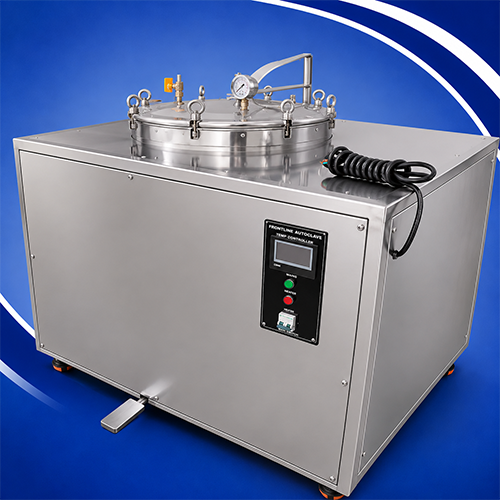

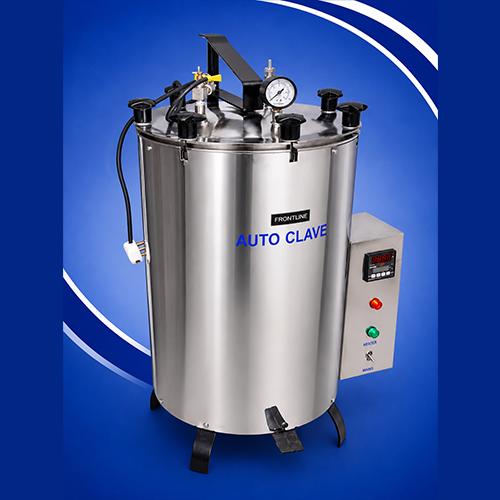

Autoclave
Outer body made of S.S. 304, with inner chamber and lid fabricated from thick S.S. 304 plates and argon welded. The unit is supplied with a foot lifting arrangement, pressure gauge, safety valve, extra safety valve, and release valve. Maximum pressure is 20 PSI, working pressure is 15 PSI, and the unit is hydraulically tested up to 40 PSI.
Process Flow
| Sr.No. | Model Number | Working Size Dia ,Height (cm) | Capacity Liters | Rating KWatts |
| 01 | FAC53 | 35x55 | 53 | 3.0 |
| 02 | FAC95 | 45X60 | 95 | 4.0 |
| 03 | FAC119 | 45X75 | 119 | 4.5 |
| 04 | FAC178 | 55X75 | 178 | 6.0 |
| 05 | FAC210 | 55X90 | 210 | 8.0 |
Standard Features:
- Digital Dual Temperature Controller
- Electronic automatic cut-off system in case of water failure
- Automatic pressure switch to cut off power supply at the set pressure
- Digital timer
Optional Features:
- Data logger with/without printer

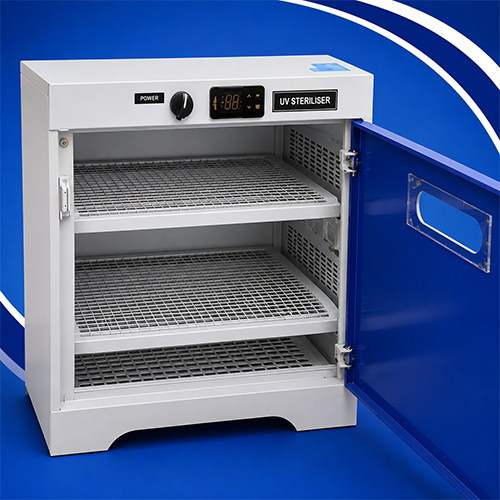

UV Chamber
| Chamber Volume | As Per Order |
| Application | All application |
| Type Of Sterilizer | UV Light |
| Material | Mild Steel |
| Shape | Horizontal |
| Chamber Size | As Per Order |
| Light Type | UVC |
| Temperature Range | NA |
| Pressure Range | NA |
| Approval Certificate | CE Certificate |
| Automation Grade | Semi Automatic |
Eliminates up to 99.9 % of harmful gems , bacteria,viruses using UV light. UV Chamber for sterilization . Suitable for office , society gate.
