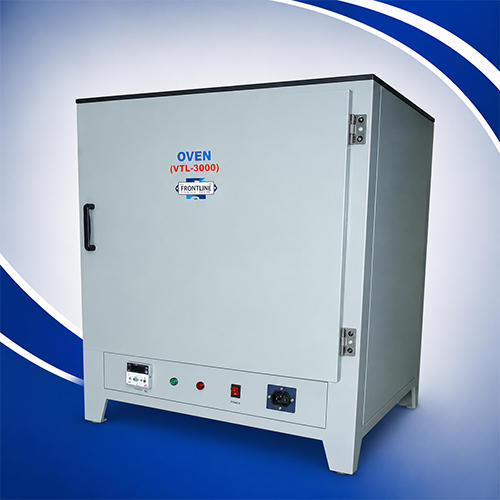

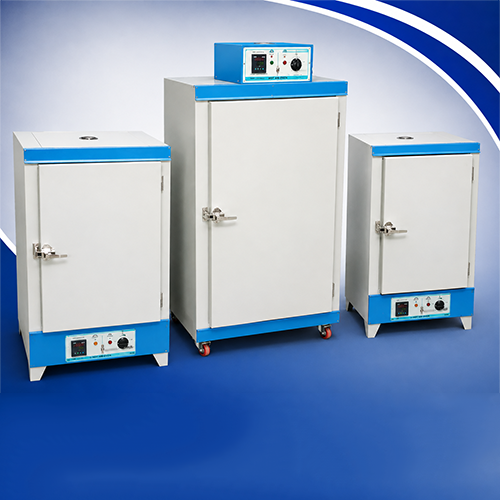

Our Hot Air Ovens, designed as per Memmert German standards, deliver reliable performance for heating, drying, and sterilizing applications. With a polished stainless-steel chamber, durable powder-coated exterior, and advanced PID microcontroller, they ensure uniform heat distribution with high accuracy.

Applications

• Medical and agricultural research
• Industrial testing and quality control
• Educational and research institutes
• Drying, heating, and sterilizing tasks

Key Features

• Temperature Range: Ambient +5°C to 250°C
• Accuracy: ±1°C
• Controller: Precision PID microcontroller
• Display: Digital temperature indicator
• Sensor: PT 100 type
• Uniform Heating: Nichrome wire heaters with side air circulation
• Data Logging: Records temperature/time via USB or printer

Construction

• Interior: Polished Stainless Steel (SS 304) / Anodized Aluminum
• Exterior: Heavy gauge MS with powder coating / SS 304 matte finish
• Chamber: Double-walled with superior insulation
• Ventilation: Side vents to remove hot gases and fumes
• Shelves: Sturdy, fabricated for smooth airflow

Power Supply

• Single Phase, 220V AC, 50 Hz (with cord and plug)

Why Choose Our Hot Air Ovens?

✔ Precise and uniform heating with PID control

✔ Durable double-walled stainless-steel chamber

✔ Versatile applications across labs and industries

✔ Easy to use, reliable, and long-lasting

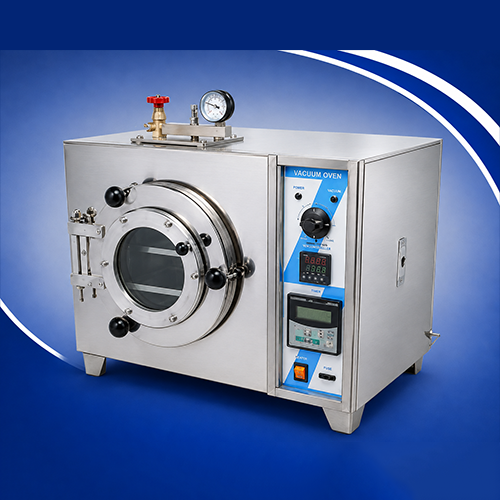

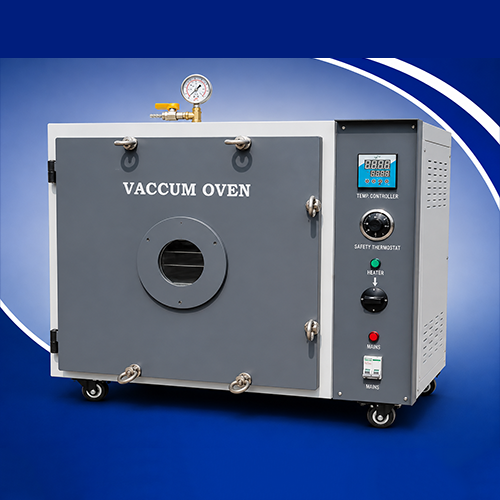

Double walled working chamber is cylindrical / Squire /Rectangular (as per Order ) made of thick stainless steel and out side made of mild steel //stainless steel . The door is of aluminum casting with center glass window for viewing without opening the door Thermostatically / Digitally controlled from 50 deg C to 200 deg C .

Complete with vacuum gauge ,vacuum release valve ,a removable shelf and with / without vacuum pump

Temp. range : Up to 200 Deg. C.

Temperature Controller : Digital, dual display.

Accuracy : + 1 Deg. C.

Working Size. :for cylindrical standard model :

Working Size. :for Square standard model

Note : We can make any size as per customer requirement
