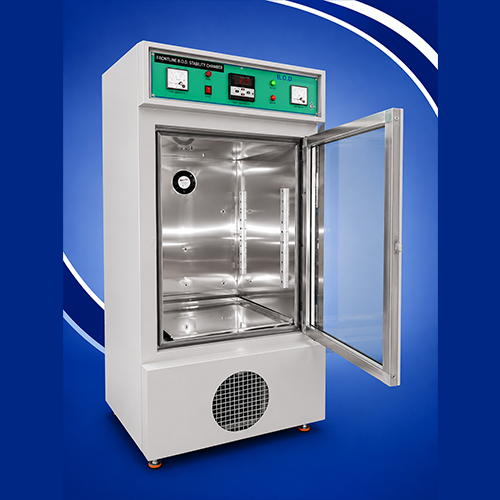

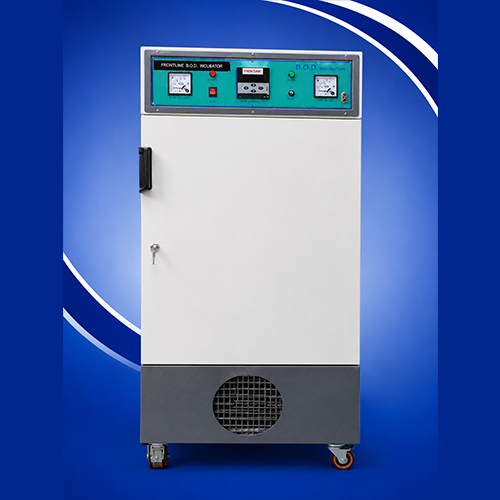

Interior Polished stainless steel/Anodized and exterior finshed in durable Powder coated paints.Stainless steel. Precisely controlled by microcontroller/ with dual display. Circuit incorporated with solid state relays. Adjustable time delay relay for safety of compressor and accurate performance Study SS trays ,precisely fabricated to give minimum resistance to air circulation.

Application : Incubator is multi purpose low temperature Incubator designed with state of the art technology to meet requirements for incubation of Bio chemical oxygen demand on water and sewage ,study of enzymatic digestion process for studying tissue culture Cell cloning, microbiology, Bio chemistry, Agricultural, Medical Pharmaceutical field etc.

Model FBOD 03,FBOD 06, FBOD 08 , FBOD 10, FBOD 12, FBOD 15 ,FBOD 18,FBOD 20,FBOD 22 ,FBOD 30

CONSTRUCTION

WORKING VOLUME :- 3,6,8,10,12,15,18,20,22,30 Cu ft.

INTERIOR :- Polished Stainless Steel /Anodized Aluminum.

EXTERIOR :- Heavy Gauge – mild Steel./ Stainless Steel

CAHMBER :- Tripled Walled.

MOBILITY :- On caster wheel

INSULATION :- Superior Thermo fiber board/PUF insulation.

INNER DOOR :- Full view glass with metal frame.

OUTER DOOR :- With Lock and key /Mauled PVC Magnetic Gasket

SHELVES :- Sturdy ,Elegant –Precisely Fabricated precisely to give minimum resistance to air circulation.

FINISH :- Durable Powder coated paint / Stainless steel finish.

DESCRIPTION

CIRCULATION :- Forced air circulation for uniform temp by suction blower with fan.

FRONT PANEL :- Mains rocker switch, cooling/heating rocker switch ,Microcontroller. Toggle switches for high and low position of heaters, Fuses .

ILLUMINATION :- With the opening of the door.

TEMPRATURE

RANGE :- 5 Deg to 50 Deg C

ACCURACY :- + 1 Deg C or Better.

CONTROLLER :- Micro controller for wet and dry both with dual display.

SENSOR : PT 100

DISPLAY : Digital LED

HEATING HEATERS : Tubular finned type heaters for dry and wet both.

REFRIGERATION COMPRESSOR : Hermetically sealed , fan cooled condenser.

POWER SUPPLY : 230 Volts 50 Hz.AC

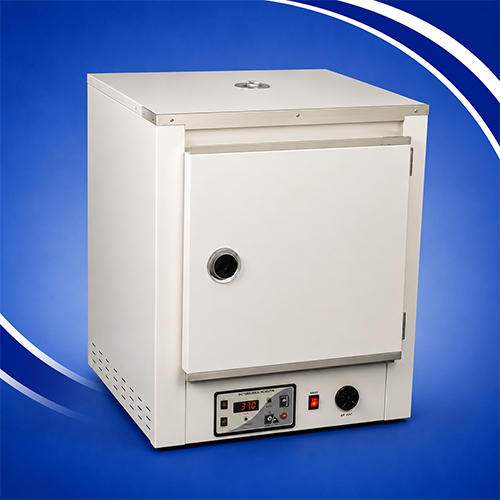

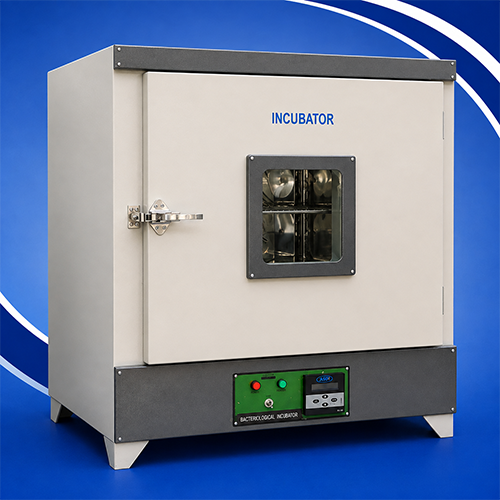

Double walled ,inside SS/Aluminum , outer powder coated M S /SS ,glass wool insulation ,temp range 5 deg C above ambient to 70 deg C controlled by sensitive thermostat / digital temp controller. With viewing glass door. The heater are placed at bottom and side for uniform heat distribution. A rotary switch is provided for selection of low , medium and high heat .Provide with neon indicators for mains and control indication.

APPLICATION ; To suit various applications in various field of Medical ,Agricultural, Industrial Research and Educational Institutes for day to day heating drying , sterilizing etc.

CONSTRUCTION :

INTERIOR : Polished Stainless /Anodized Aluminum.

EXTERIOR : Heavy Gauge – mild Steel.

CAHMBER : Double Walled.

VANTILATION : Air Ventilators are provided near the top of the sides for removing hot gases and fumes.

SHELVES : Sturdy, Elegant – Precisely fabricated to give minimum resistance to air circulation.

FINISH : Finished with attractive and durable powder coated paint in pleasant shade.

DATA LOGGING PORT : Data(TEMP/ TIME) can be recorded and collected on PEN Drive/Printer.

DESCRIPTION : FRONT PANEL

Range : 5 Deg above Ambient to 70 Deg C

ACCURACY : + 1 Deg C

SENSOR : PT 100

TEMP .DISPLAY : Digital

TEMP.CONTROLLER : PID Controller .

Data Logger with Printer

VALIDATION : Thermo meter covered access port available at TOP.

HEATER ; High grade Nichrome wire placed in the ribs of three sides for uniformity .

POWER : Supplied with cord wire and plug to operate on Single Phase 220 V AC ,1 phase 50 Hz Supply.
